Dental Electrosurgery Unit

Function and Features:

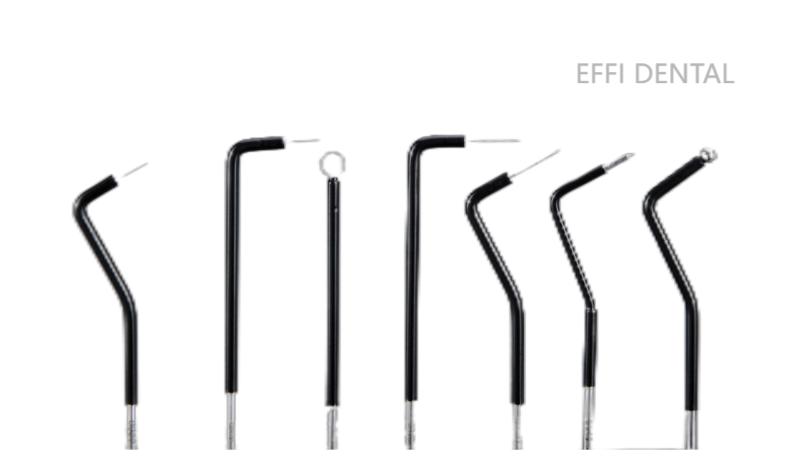

 Function: this device is used for the fast and precise incision and coagulation of soft tissue and is used in medical institutions. Features: 1. Safe/Professional/Effective/Convenient 2. Incision and coagulation can be adjusted freely 3. Seven pieces high performance and hyperfine electrodes 4. Reliable and compact unit 5. Excellent therapeutic control 6. The whole set of electrode holder is light and autoclavable 7. Innovative conductive bracelet (Neutral Electrode) 8. 30 watts is enough for greater efficienc

Specifications:

Supply voltage: 115VAC / 230VAC Supply frequency: 50 Hz / 60Hz

Power consumption: 170 VA to 230 VA Max power output: 30W Characteristic impedance: 600Ω Output impedance range: 100Ω to 2000Ω Output voltage: 650V PP - P = 10, W=1

 Output frequency: 1.2MHz ± 0.2MHz

Warranty: 1 year for main unit and half year for spare parts from selling time

Main unit dimensions: 23 x 26 x 11cm Main unit weight: 1.5kg Net weight: 2.0kg Gross weight: 3.0kg Box dimensions: 37 x 37 x 17cm Packing data: 1 unit/carton 3.5kg 39 x 38 x 18cm 4 units/carton 13kg 75 x 38 x 35cm Operating temperature: +10℃ to +30℃ Storage temperature: -20℃ to +70℃ Operating relative humidity: 30% to 75% Storage relative humidity: 10% to 100% including condensation Atmospheric pressure: 80KPa to 106KPa Altitude : ≤2000 meters Packing List: No. Item Qty. Mark 1 Main Unit 1 2 Electrode Holder 1 with cord 3 Wired Footswitch 1 4 Power Cable 1 with grounding 5 Electrode Holder
