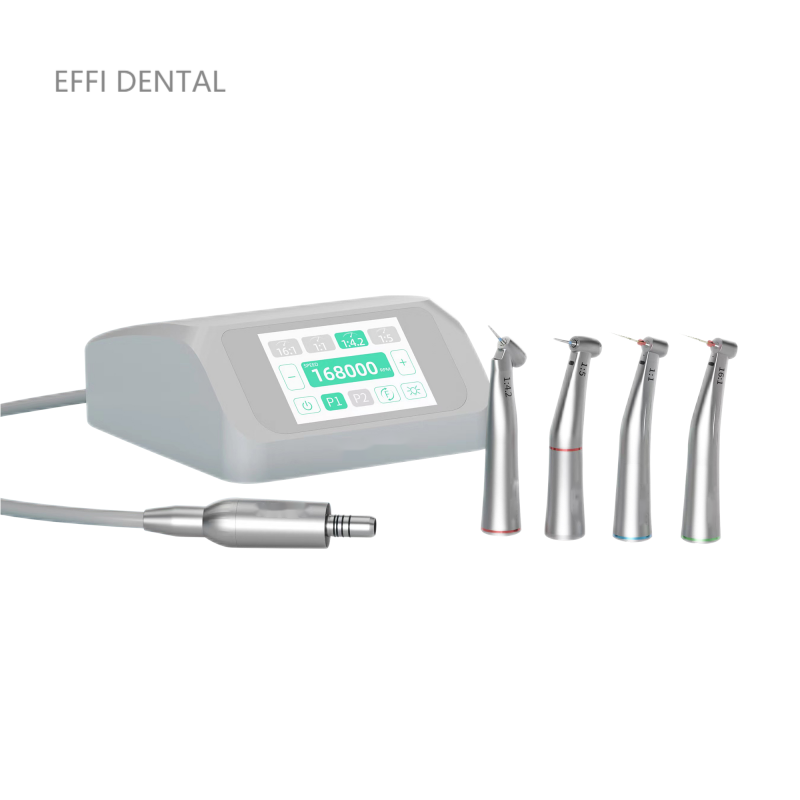

Dental Electric Motor

Specification:

Motor Ratio speed:  2000-40000 r/min, adjustable

Ratio: 16 :1    M1: 200RMP             M2:1500RPM

           1:1        M1:  2000RPM          M2:40000RPM

           1:4.2    M1:8400RPM            M2:168000RPM

           1:5       M1:  10000RPM         M2:200000RPM

Working Air Pressure:  0.2Mpa – 0.4Mpa

Water Pressure :  0.2Mpa –  0.4Mpa

Adapter:

Input voltage AC110~220V 50/60Hz

Output voltage: 24Vdc

Output current: 5000mA

Configuration:

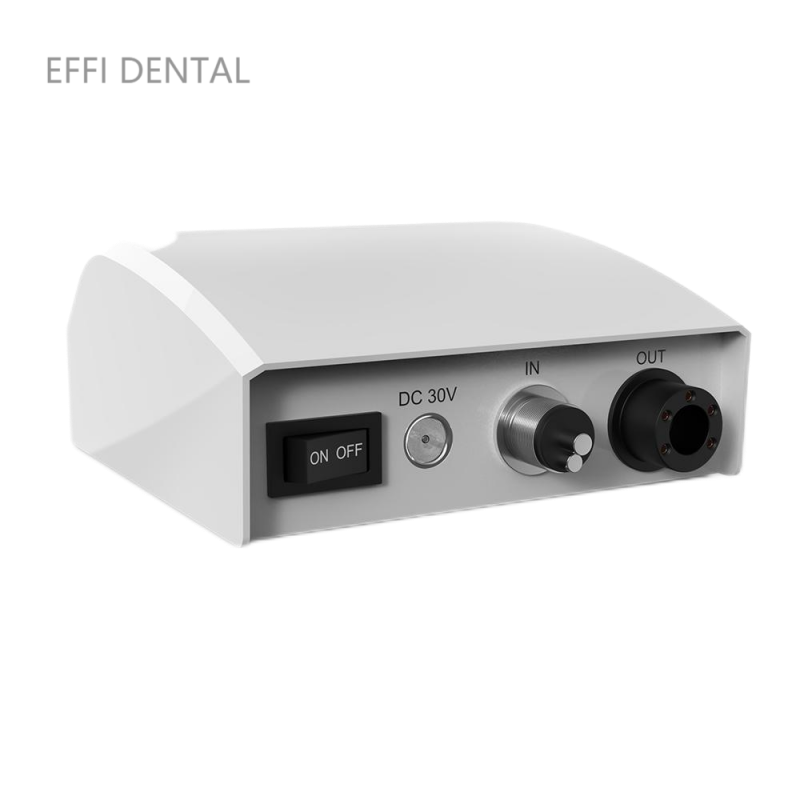

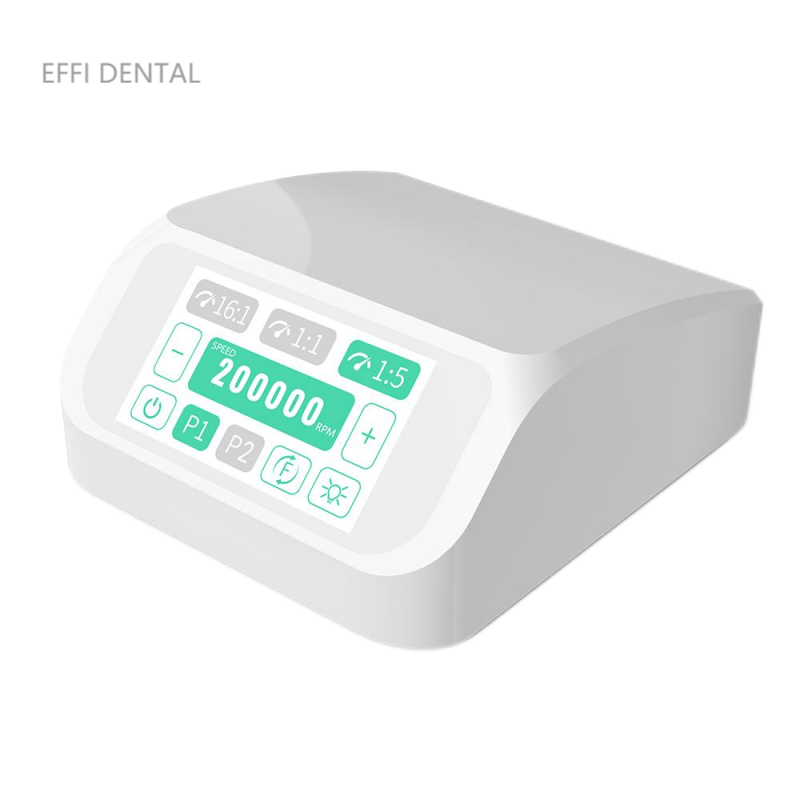

Main Unit x 1

LED Micro Motor with Cable x 1

Power Adapter x 1

User Manual x 1
